Catnic Heavy Duty 100mm Cavity Lintel CH90/100

The Catnic CH90/100 Cavity Lintel features continuous Insulation.

Masonry built upon both the Outer Leaf and Inner Leaf

This Catnic Lintel with Built-in DPC saves Construction Time

Catnic linings are formed from galvanised steel and then powder-coated.

Available in  900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1650mm, 1800mm, 1950mm, 2100mm, 2250mm and 2400mm.

If you need longer than 2400mm then we have the CX90/100mm Extra Heavy Duty Lintel which is available in lengths up to 4800mm

It is essential to use with Nominal 150mm End Bearings

Both leaves are raised together and require one block course before the installation of the floor/roof.

Suitable for Fair Faced Inner Leaf Masonry and Supports uniformly distributed Masonry Loads / Distributed Timber Floor and Roof Loads

Catnic CH90 Heavy Duty Key Features

• Built-in DPC
• Integral Plaster Key
• Continuous Insulation
• Minimises Thermal Bridging
• Supports Concrete Floors
• Attic Truss Loads
• Larger Span Multiple Truss Loads
• Triangulated Masonry Load
• Suitable for Fair Face Inner Leaf Masonry

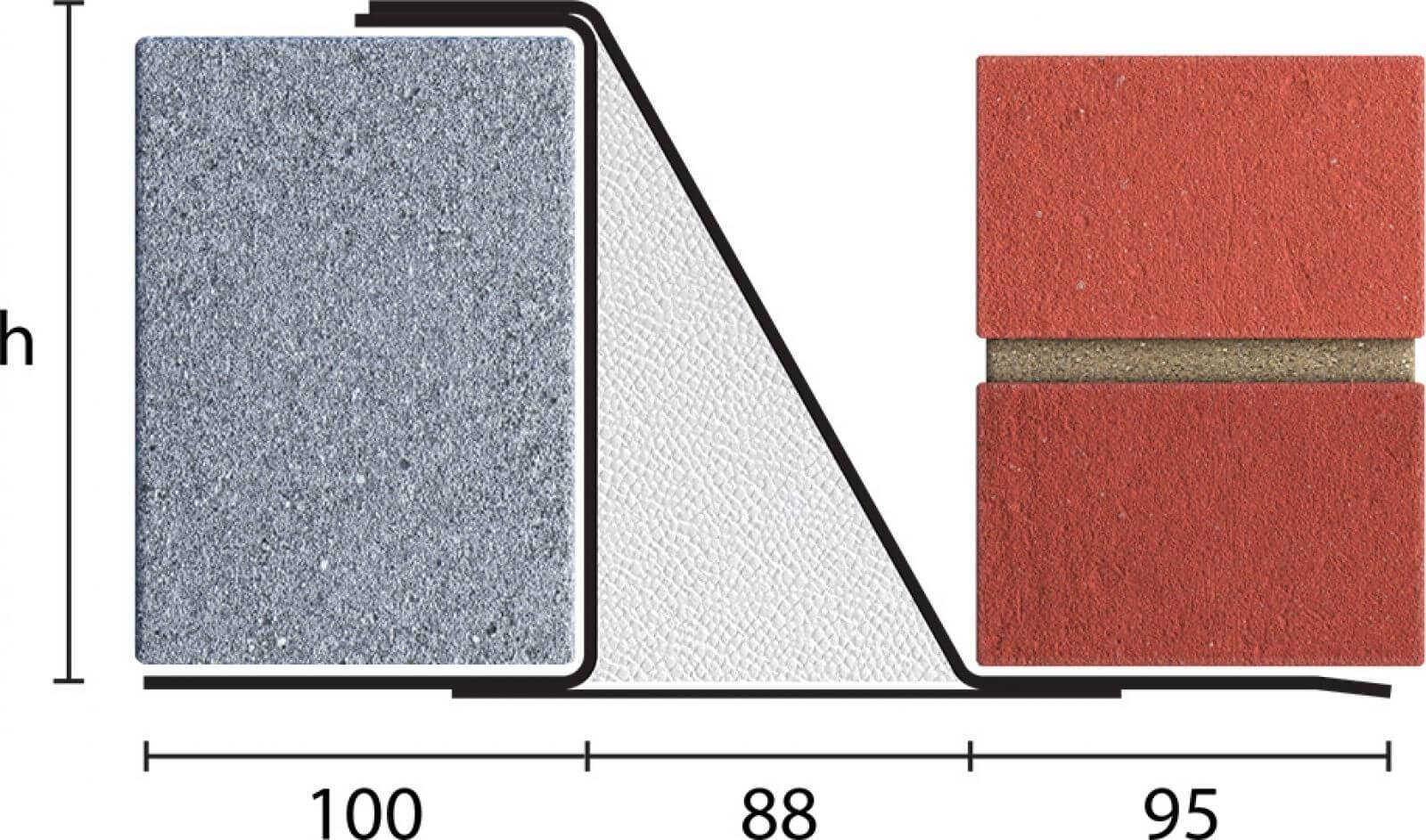

• 90-105mm Cavity
• 100-115mm Inner Leaf
