Catnic 70mm Cavity Lintel CG70/100

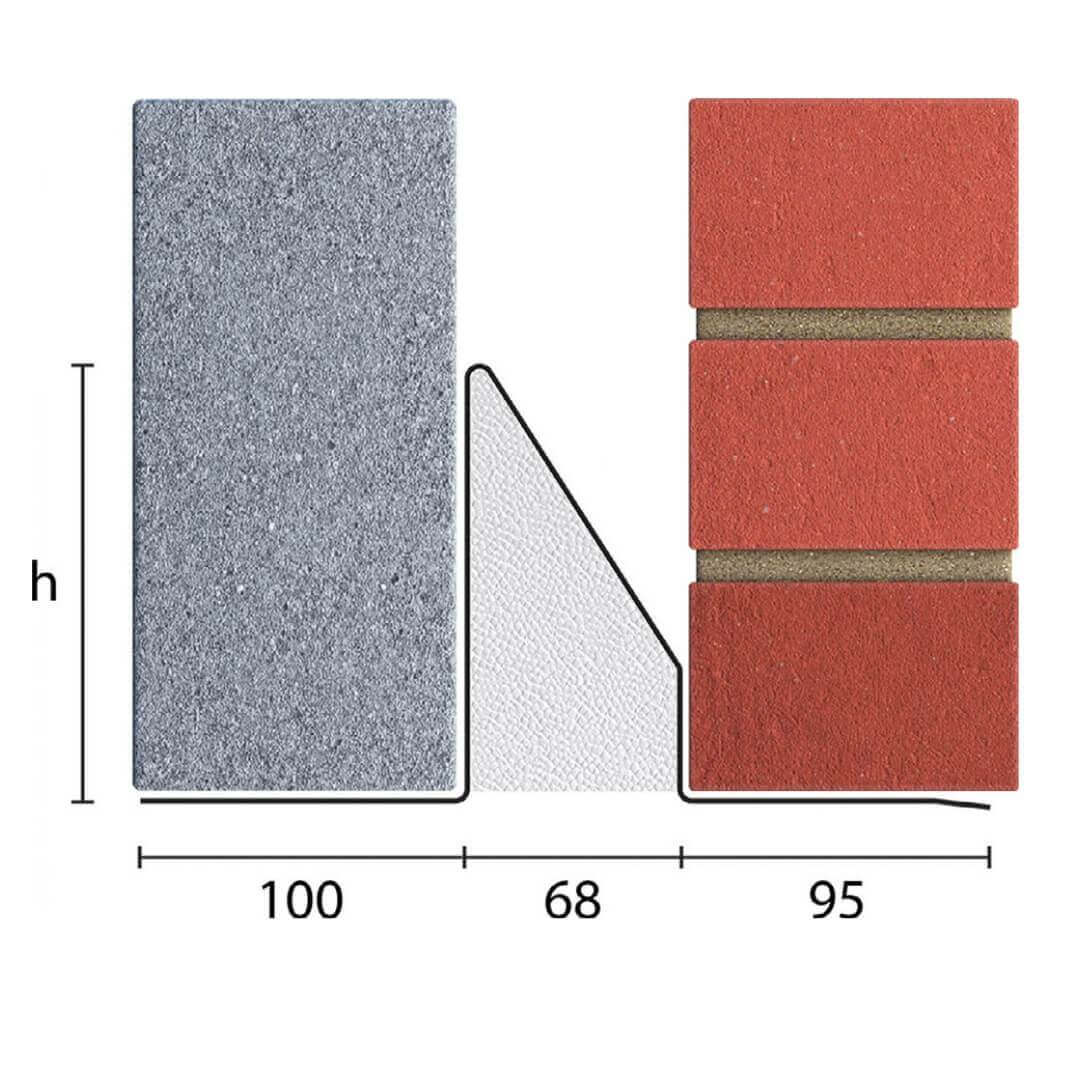

Catnic Cavity Wall Lintel CG70/100 is a Popular Choice for 70-85mm Cavity

The Profile allows Masonry to be built upon both Outer Leaf and Inner Leaf

This Catnic Lintel comes with Duplex Corrosion Protection for more extended Durability and Built-in DPC

Staggered Slots applied to the inner Flange and Ribbed Underside of Insulation

Continuous Insulation maximises Thermal Efficiency and Minimises Cold Bridging

Suitable for Fair Faced Inner Leaf Masonry and Supports uniformly distributed Masonry Loads / Distributed Timber Floor and Roof Loads

Catnic CG70 Cavity Lintel Standard Duty Key Features

• Built-in DPC
• Standard Duty Cavity Wall Lintel
• Open Back Lintel
• Galvanised Steel
• Powder Coated
• Easy to Clean
• Integral Plaster Key
• Continuous Insulation
• Minimises Thermal Bridging
• Triangulated Masonry Load
• Suitable for Fair Face Inner Leaf Masonry
• 100-115mm Inner Leaf
• 70-85mm Cavity
• Download Catnic Cavity Wall Lintel 70mm CG70 Technical Information
